Below ground system B-1

Sku: АС 18.01П
Location of the shaft
Below ground
Shaft material
Stainless steel
Request a price
Qty:
call us
Automatic pool cover includes :



motor   stainless steel shaft
mounting flanges with gaskets  control switchboard
key switch with open, close. stop functions   set of straps
set of spoilastics or directional guides   slats
steinless steel sleeve through wall with flexible reinforced hose & hose clamp  mounting set



Options:
 remote control set - 2 channels ( open, close)



Узнать стоимость

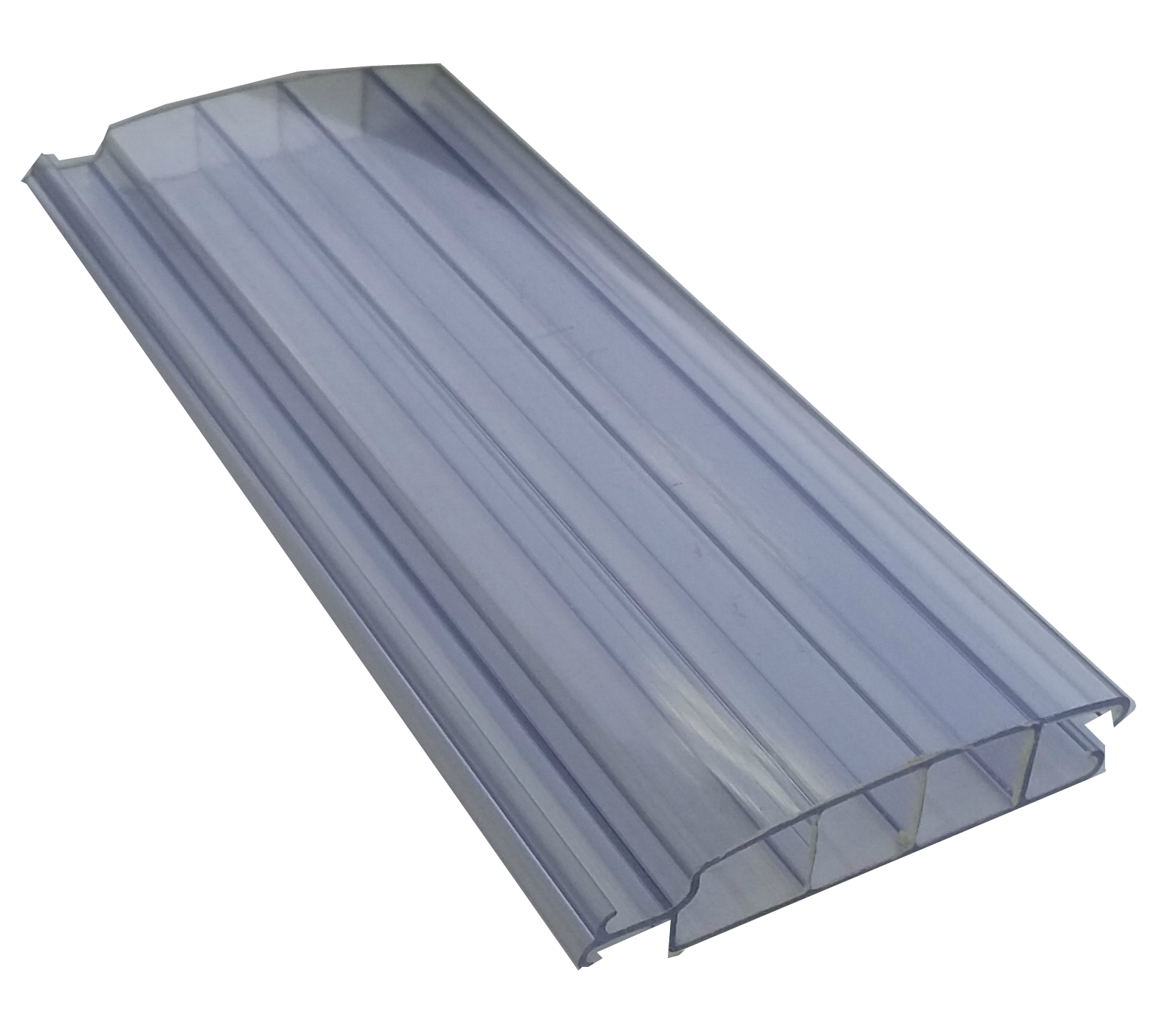

The cover is suitable for a new or existing pool. The shaft is installed at the bottom of the pool. The control is carried out automatically by turning the key or the remote control. The slats are made of PVC and polycarbonate. The width of the slats is 60 mm, the thickness is 14 mm. The external diameter of the shaft is 154 mm.The design of the pool cover is able to withstand the weight of an adult.

  Our advantages:



 minimum time production  high-quality European motors
 fixed low prices  flexible system of discounts
 no extra  surcharge for trimming the slats  shaft and components of stainless steel
 turnkey installation of the system



  Colour of slats of PVC:



   011 white  012 beige 013 blue

014 Gray  015  brown 016 crystal




 Colour of slats of polycarbonate:



Solar Metallic    Solar Blue    Solar Clear


Crystal clear   Clear Blue




  Technical characteristics of underwater motors:



24Vdc motor  flexible cable multi-wire
IP68 waterproofness class limit switch electronic manage
stainless steel 316L shaft installation up to 2 meters
possibiility to adjust the speed
